Fill Boxes and Fill Stations

Automated Fuel Oil Fill Ports

Features:

  • Easily accessible fill operation for aboveground storage tanks
  • 12 Gallon spill containment area with incorporated leak switch and hand pump
  • Weather-proof stainless steel construction
  • Two-point lockable enclosure
  • Wall-Mounting Brackets

Sidewalk Spill w/ Overfill Alarm Panel

Features:

  • 3/8" Thick Diamond Plate Cover
  • 1/8" BUNA-N Gasket
  • 3" Flexible Entry Boot
  • 3/4" Conduit Connection
  • Hand Pump
  • 14GA. Steel Skirt & Bottom
  • Four (4) CAM Locks
  • One recessed Water Tight Handle
  • Piping & Electrical Supplied By Others



Options:

  • Overfill Alarm Panel (OAP)
  • Tank Level Display
  • Multiple Tank Fill

Below Grade Level Spill Containers

Features:

  • Watertight Design
  • Cover Options
  • API Cover Identification Plates
  • Highway 20 Rated (D.O.T H20)
  • Auto-Drain
  • Optional Cover Actuated Push Drains (C.A.P.D)
  • Centering-Ring

Grade Level Spill Containers

Features:

  • Solid Construction
  • Cast Iron or Composite Base
  • Heavy Duty Cast Iron Deflector
  • Drain Valve
  • Cover Options
  • Optional API Cover Identification Plates
  • Highway 20 rated (D.O.T. H20)

Wall Mounted Stainless Steel Fill Boxes

Features:

  • Stainless Steel Construction
  • Weatherproof Enclosure
  • Flush Design
  • Locking Handles
  • 3.5 Gallon Containment for Spilled Oil (Standard Model Only)
  • 3/4" NPT Drain
  • Entry Boot (For Fill Pipe)



Options:

  • Multiple Fill Connections
  • Overfill Alarm Panel (Inside Mount)
  • Digital Tank Gauge Display
  • Leak Switch



Fill Station – Manual Type:

Features:

  • NEMA-4 Enclosed for Indoor and Outdoor use, includes 3-Point latch and lock door
  • 2” Camlock fill connection with quick-disconnect and dust cap
  • 2” NPT Rear Outlet
  • Full Port Fill Connection Isolation Ball Valve
  • Hand Pump for spill containment area with shut-off and check valves
  • Float-Style Leak Switch for spill/ leak alarm
  • Optional integral Overfill Alarm Panel

Fill Port – Top Outlet:

Features:

  • Factory Installed Fill Port Control Panel
  • Padlock-able door latch
  • 4” Female Coupling Fill connection with check valve
  • 4” Top Outlet
  • Full Port Fill Connection Isolation Ball Valve
  • Hand Pump for spill containment area with shut-off and check valves
  • Optional Float-Style Leak Switch for spill/ leak alarm

Wall Fill NEMA-6P (Recessed Mounted)

Features:

  • Surface Mounting also available
  • NEMA-6P for Indoor and Outdoor use with EPDM Environmental N6P Gasket and Hinges
  • NEMA-3R Interior Door with Keyed locks
  • 10 ga. Stainless Steel Construction
  • 4 Gallon Spill Containment
  • 3/4” Conduit Coupling
  • 1/2” Drain fitting
  • Optional Integral Overfill Alarm Panel
  • Optional Tank Level Display

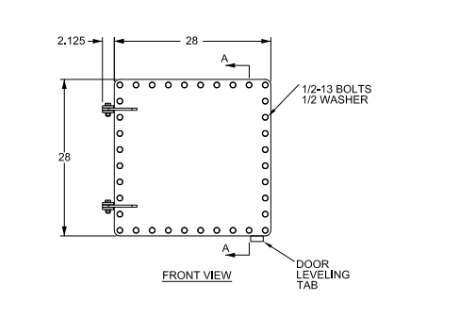

Wall Fill NEMA-6P (Surface Mounted)

Features:

  • Recessed Mounting also available
  • NEMA-6P for Indoor and Outdoor use with EPDM Environmental N6P Gasket and Hinges
  • NEMA-3R Interior Door with Keyed locks
  • 10 ga. Stainless Steel Construction
  • 4 Gallon Spill Containment
  • 3/4” Conduit Coupling
  • 1/2” Drain fitting
  • Optional Integral Overfill Alar
  • Optional Tank Level Display
