Tank Gauging, Overfill Prevention, Leak Detection

Modular, Multi-Tank Gauging Systems

With EPA Complant In-Tank and Secondary Containment Leak Detection

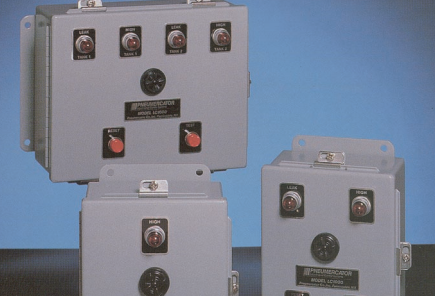

Audible Alarm Controls: LC 1000


  • Consoles can monitor multiple tanks
  • High and low level warning lights
  • Audible alarm with reset button
  • Multiple switches
  • Push button test
  • Intrinsically safe operation of tank mounted sensors

Overfill Alarm Panel w/ Wiring


  • Factory installed in fill box optional
  • Digital display in gallons optional
  • NEMA 4 enclosure for outdoor service optional

Discriminating Liquid Sensor for Interstital Applications


  • Three distinct outputs: dry, water present, fuel present.
  • Compact - Fits interstitial spaces
  • Unaffected by vapors; even at high concentrations.
  • Easy removal and re-installation for cleaning.
  • No moving parts - Long life.

Compact, Side Mount Switches


  • No-leak construction
  • ideal for small tanks
  • Side-wall mounting: internal or external
  • Broad media compatability
  • Operates on falling or rising level
  • Extreme temperature/pressure model
  • Floats can either rise or lower with the liquid level depending on the mounting position

Compact Switches For Higher Temperatures and Pressures


  • Ideal for shallow tanks
  • Broad media compatibility
  • Selectable to Normally-Open or Normally-Closed by inverting the float
  • 50 VA SPST switch (standard)

Solid-State, Electro-Optic Secondary Containment Leak Sensor with Fault Detection


  • Solid-state, electronic leak sensor utilizing electro optic technology to detect the presence of liquids in secondary containment applications.
  • Contains no moving parts
  • Unaffected by vapors
  • Ideal for interstitial spaces

Product Distinguishing Secondary Containment Leak Sensor with Fault Detection


  • Solid state
  • Electronic
  • Utilizes electro-optical and conductivity technologies to detect and differentiate between hydrocarbon-based liquids and water in secondary containment applications.
  • No moving parts
  • Unaffected by vapors
  • Ideal for interstital spaces

Secondary Containment Leak Sensor w/ Fault Detect Option


  • Provides secondary containment leak detection for above ground and underground storage tank applications
  • Ideal for monitoring shallow liquid levels
  • Available in Buna N or stainless steel float for monitoring in most petrochemical and chemical storage tank applications.
  • Supports Pneumercator's Fault-Detect supervised wiring technology, which automatically detects field wiring faults when connected with a TMS series controller.

Dual Float Reservoir Sensor


  • Detects level changes within the reservoir
  • Wired as discriminating or non-discriminating
  • High alarms for breaches in the inner tank
  • Low alarms for breaches in the outer tank

Level Switches - Single Point


  • Compact and economical
  • Variety of mountings, power requirements and electrical terminations to make it easy to find a perfect match to your application.

Continuous Output Level Transmitter


  • 4-20 mA output
  • Power: 24 VDC
  • 2 Wire Loop Powered
  • 316L stainless, brass & engineered plastics
  • Replaceable solid state electronics
  • Lengths up to 12 feet
  • Watertight NEMA 4 (IP65) enclosure


Rigid Magnetostrictive Level Gauging Probe


  • EPA Compliant in-tank leak tests in underground storage tanks
  • Available in lengths of up to 18'
  • Proven magnetostrictive technology for accuracy and reliability

Flexible Magnetostrictive Level Gauging Probe


  • Proven magnetostrictive technology for accuracy and reliability.
  • Flexible shaft construction permits easy shipping, handling, and installation of probes up to 50' in length.
  • Suited for large bulk storage tanks to fifty 50' in height.

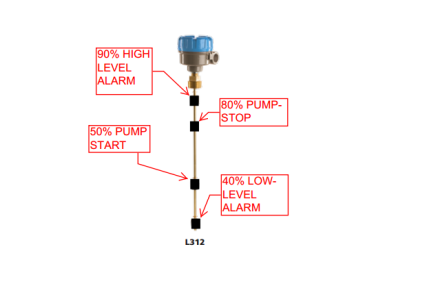

Multiple Stage Float Switch: L312 Series/500 Series


  • Over 300 combinations of floats, mounts, and material options
  • Up to five independent switch points
  • Versatile, econmic way to monitor multiple liquid level points within a single tank
  • Track changing levels within the tank as well as monitoring liquid interfaces of dissimilar liquids in a single tank like oil water separations, chemical emulsions or condensation levels.

L500 Series Features:

  • Monitors up to eight independent levels in a single device
  • Available in lenths of up to 15'
  • Over 1,400 possible combinations of floats, mounts, and material options.
